UV-LED device S50N-U

Application

  • UV Cure
  • adhesion ,Drying

Specification


DC Forward Current MAX700mA
pulse Forward Current 1000mA
Power Dissipation 3W
Operating Temperature -20～80℃
Junction Temperature 125℃

Characteristics

Forward Voltage (@700mA) 4.25V
Radiation Power 240mW
Peak Wavelength 368nm
Dimensions W5.0×D5.0×H0.9mm
MAIL

UV-LED device S50N-U
* Window of specification(PDF) by click

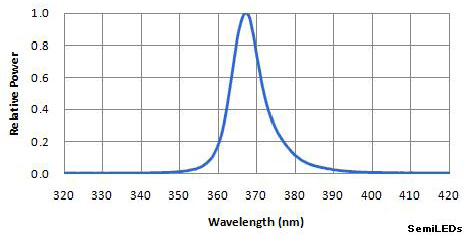

spectrum
* Expansion window by click.

back side
* Expansion window by click.
