UV-LED irradiation unit

Top page Products information In-Line UV-LED unit

Compact UV-LED unit

Application

  • UV Cure
  • adhesion ,Drying

Specification


Power supply voltage AC100V 100W
window area 8×100mm
Weight 150g
Cooling Water cooling,Nitrogen
Dimensions 104(W)×15(D)×50(H)mm

Characteristics

Peak Wavelength
(nm)		 Standard Power
Rediation Power(mW)		 High Power
Rediation Power(mW)
365 300 1000
385 - 1000
405 300 1000

※Option condenser lens
MAIL

In-Line UV-LED unit

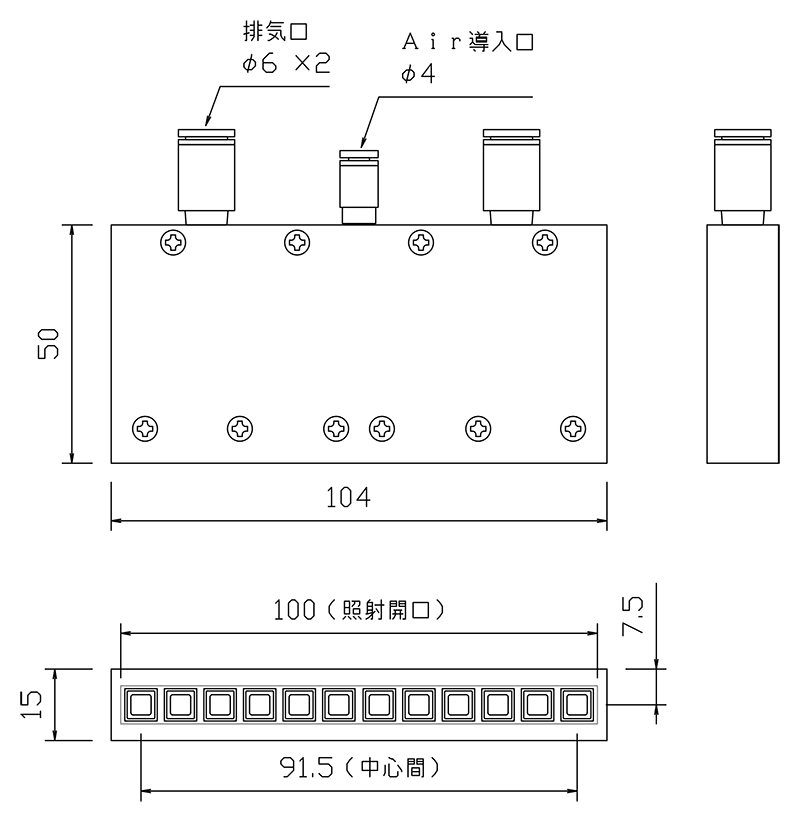

Drawing
* Expansion window by click.

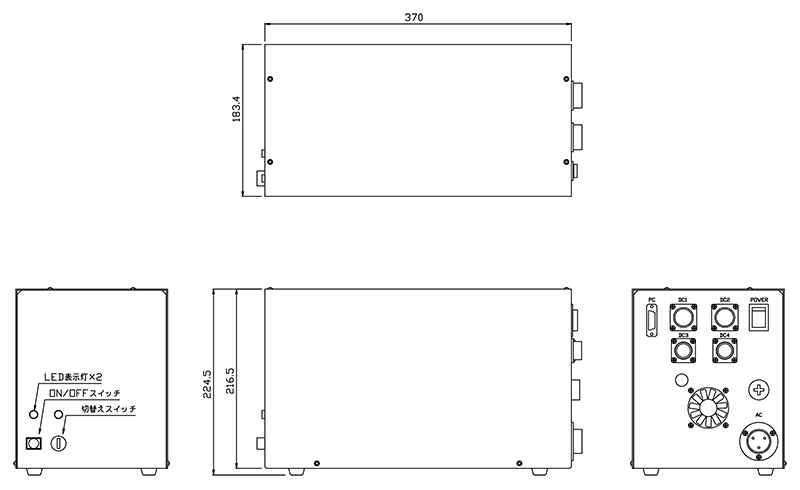

Power supply unit Drawing
* Expansion window by click.


wavelength spectrum
* Window of LED specification(PDF) by click.
